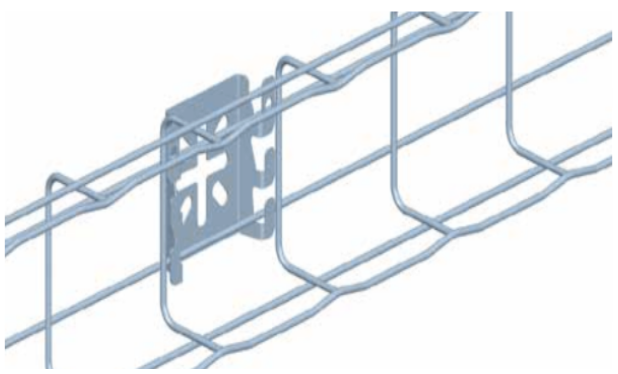

CM 50XL is a heavy-duty wall mounting clip designed to support Cablofil wire mesh cable trays, providing enhanced strength and stability for wider trays and higher load applications.
- Compatible with: CF30, CF54, CF80, CF105
- Width range: 100 mm to 600 mm
- Designed for wall-mounted installations
- Extended and reinforced design for higher load capacity (~60 daN)
- Suitable for medium to heavy-duty cable loads
- Multi-slot hole design for flexible installation (approx. 8.5 × 25 mm slots)
- Provides secure and stable tray positioning
- Easy installation using standard fasteners
- Compact but strong support structure
- Available finishes: Electro-Zinc (EZ), ZnMg, Stainless Steel (304L / 316L)
- Corrosion-resistant and durable
- Ideal for commercial, industrial, and infrastructure applications

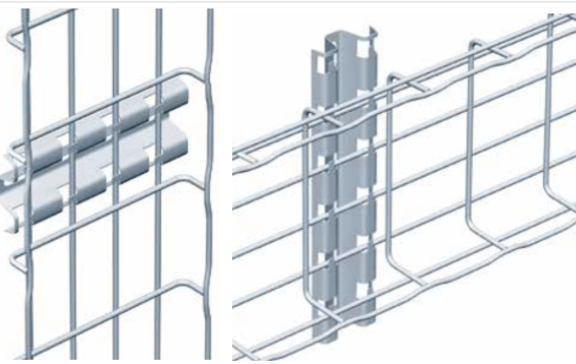

RCSN is a reinforced cantilever support designed to provide heavy-duty wall-mounted support for Cablofil wire mesh cable trays, ensuring high load capacity and stability in demanding installations.
- Compatible with: CF30, CF54, CF80, CF105
- Width range: 100 mm to 600 mm
- Used for heavy-duty wall-mounted support
- Reinforced structure for higher load-bearing capacity
- Ideal for industrial and high-load applications
- Provides stable and secure cable routing without floor supports
- Features FAS (Fast Assembling System) for quick installation
- Allows clean and space-saving installation
- Easy fixing with standard hardware (e.g., bolts and clamps)
- Available finishes: Electro-Zinc (EZ), Hot-Dip Galvanized (HDG), Stainless Steel (304L / 316L)
- Corrosion-resistant and durable
- Suitable for infrastructure, industrial plants, and data centers
UC 50 is a universal wall-mount clip used to secure Cablofil wire mesh cable trays directly onto walls or vertical surfaces, providing a compact and stable support solution for light to medium cable loads.
- Compatible with: CF30, CF54
- Designed for tray height: 50 mm
- Used for direct wall mounting of cable trays
- Snap-fit design for quick tray installation
- Minimal hardware required (can be fixed with screws/anchors)
- Compact and space-saving solution
- Suitable for vertical or horizontal mounting
- Ensures stable and aligned cable routing
- Can be installed on surfaces with approx. 5 mm clearance
- Available finishes: Electro-Zinc (EZ), Hot-Dip Galvanized (HDG), Stainless Steel (304L / 316L)
- Corrosion-resistant and durable
- Ideal for commercial, light industrial, and structured cabling systems
CSN is a cantilever support bracket designed to hold and support Cablofil wire mesh cable trays from walls or vertical structures, providing strong and stable cable routing without the need for floor supports.
- Compatible with: CF30, CF54
- Width range: 100 mm to 450 mm
- Used for wall-mounted cantilever support
- Provides strong load-bearing capacity (approx. 85–130 daN depending on size)
- Available sizes: CSN 100, CSN 150, CSN 200
- Lengths (L1): approx. 178 mm, 228 mm, 278 mm
- Ideal for installations requiring side-mounted tray support
- Enables clean and space-saving cable routing
- Easy installation with standard fasteners
- Available finishes: Electro-Zinc (EZ), Hot-Dip Galvanized (HDG), Stainless Steel (304L / 316L)
- Corrosion-resistant and durable
- Suitable for commercial, industrial, and infrastructure applications

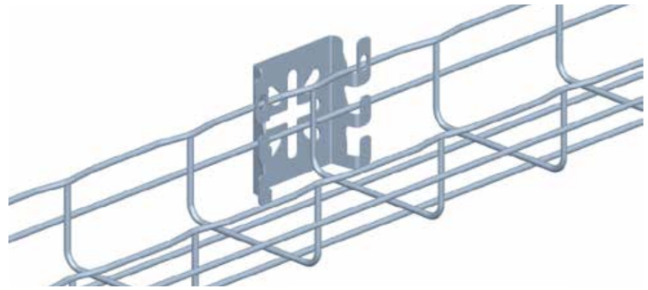

CM 50XL is an extended mounting clip designed to support and secure larger Cablofil wire mesh cable trays, providing enhanced stability for wider and heavier cable installations.
- Compatible with: CF54, CF80
- Designed for tray heights: 50 mm and 100 mm
- Used for mounting tray to walls or structural supports
- Extended design for larger tray sizes and higher load capacity
- Provides stronger and more stable fixation compared to standard clips
- Multi-hole configuration for flexible installation
- Easy installation using standard fasteners
- Suitable for medium to heavy-duty applications
- Available finishes: Electro-Zinc (EZ), ZnMg, Stainless Steel (304L / 316L)
- Corrosion-resistant and durable
- Ideal for commercial, industrial, and infrastructure cable management systems

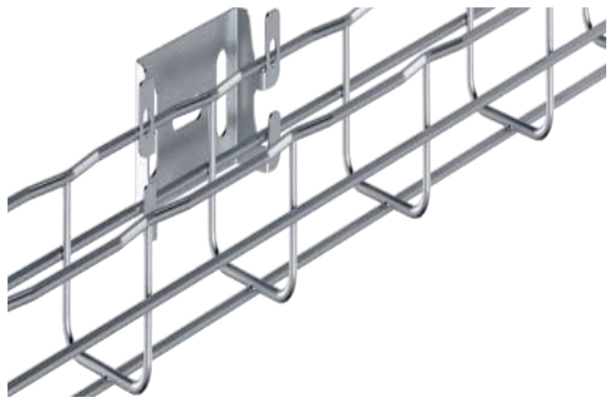

CM 50 is a mounting clip designed to secure Cablofil wire mesh cable trays to vertical or horizontal supports, ensuring stable positioning and reliable cable routing.
- Compatible with: CF54
- Designed for tray height: 50 mm
- Used for mounting tray to walls or structural supports
- Provides firm and stable fixation
- Compact design with multiple fixing holes (e.g., 3 holes 8×20 mm)
- Load capacity: approx. 12 daN
- Easy installation using standard fasteners
- Enhances alignment and support of tray systems
- Available finishes: Electro-Zinc (EZ), ZnMg, Stainless Steel (304L / 316L)
- Corrosion-resistant and durable
- Suitable for commercial and industrial cable management systems

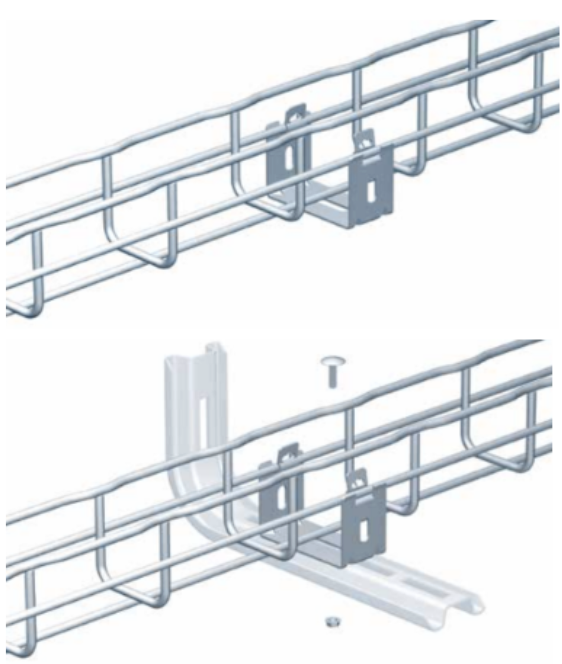

UC 50 is a universal clip designed to fix and support Cablofil wire mesh cable trays to various structures such as strut channels, brackets, or supports, ensuring a secure and stable installation.
- Compatible with: CF30, CF54
- Designed for tray height: 50 mm
- Used for fixing tray to strut channels or supports
- Provides quick and secure attachment
- Simple installation (snap-fit + bolt fixing)
- Reduces installation time and labor
- Compact and versatile design
- Works with standard hardware (BTRCC 6×20 bolts)
- Available finishes: Electro-Zinc (EZ), Hot-Dip Galvanized (HDG), Stainless Steel (304L / 316L)
- Corrosion-resistant and durable
- Suitable for commercial and industrial cable management systems
